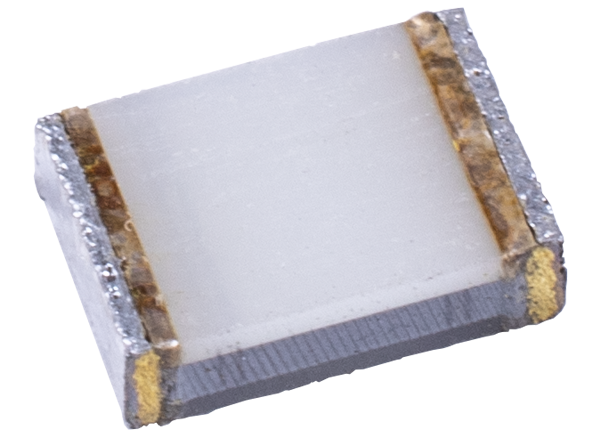

Panasonic ECW-U SMD Film Capacitors

Panasonic Electronic Components surface mountable ECW-U Film Capacitors use stacked metallized PEN film as the dielectric and are available in 100, 250, and 630 voltages. The ECW-U Film Capacitors from Panasonic Electronic Components have a simple moldless construction and offer small size, reflow solder capability, operating temperature range of -55ºC to 125ºC, and RoHS compliance.

FEATURES
  • Small size
  • Capacitance Ranges:
    - 100V: 0.012µF - 1.0µF (E12)
    - 250V: 0.0010µF - 0.12µF (E12)
    - 630V: 0.022µF, 0.027µF, and 0.033µF
  • For reflow soldering
  • RoHS directive compliant
  • Operating temperature range: -55ºC to +125ºC
APPLICATIONS
  • Coupling
  • By-pass
  • Panasonic
  • Passive Components|Capacitors
