Texas Instruments ADS1299 Low-Noise, 8-Channel, 24-Bit Analog Front-End for Biopotential Measurements

TI ADS1299 Low-Noise, 8-Channel, 24-Bit AFE
for Biopotential Measurements

Texas Instruments ADS1299 Low-Noise, 8-Channel, 24-Bit Analog Front-End (AFE) for Biopotential Measurements is a low-noise, multi-channel, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator. TI ADS1299 AFE incorporates all commonly-required features for electroencephalogram (EEG) applications. ADS1299 features high levels of integration and exceptional performance, enabling the creation of scalable medical instrumentation systems at significantly reduced size, power, and overall cost. This TI device has a flexible input multiplexer per channel that can be independently connected to the internally-generated signals for test, temperature, and lead-off detection. Additionally, any configuration of input channels can be selected for derivation of the patient bias output signal. The ADS1299 operates at data rates from 250 SPS to 16 kSPS.

Features
  • Eight Low-Noise PGAs and Eight High-Resolution Simultaneous-Sampling ADCs
  • Very Low Input-Referred Noise: 1.0 µVPP (70Hz BW)
  • Low Power: 5mW/channel
  • Input Bias Current: 300pA
  • Data Rate: 250 SPS to 16 kSPS
  • CMRR: -110dB
  • Programmable Gain: 1, 2, 4, 6, 8, 12, or 24
  • Unipolar or Bipolar Supplies:
    • Analog: 4.75V to 5.25V
    • Digital: 1.8V to 3.6V
  • Built-In Bias Drive Amplifier, Lead-Off Detection, Test Signals
  • Built-In Oscillator
  • Internal or External Reference
  • Flexible Power-Down, Standby Mode
  • Pin-Compatible with the ADS1298IPAG
  • SPI™-Compatible Serial Interface
  • Operating Temperature Range: -40°C to +85°C
Applications
  • Medical Instrumentation (EEG and ECG)
    • EEG, Bispectral index (BIS), Evoked audio potential (EAP), Sleep study monitor
  • High-Precision, Simultaneous, Multichannel Signal Acquisition

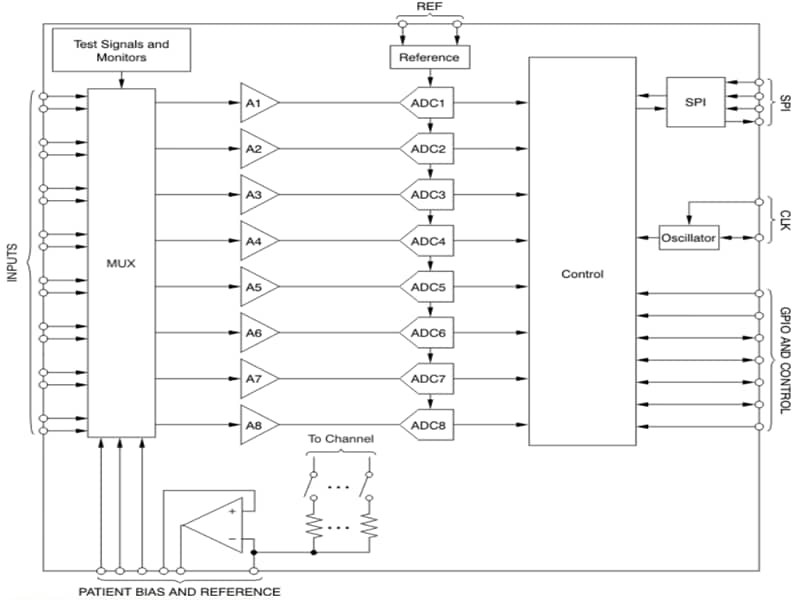

Functional Diagram

Functional Diagram
