NXP PCA9570 4-Bit General Parallel Output

NXP PCA9570 4-Bit General Parallel Output Expander

NXP PCA9570 4-Bit General Parallel Output (GPO) Expander is a remote CMOS device designed for 4-bit general purpose parallel output (GPO) expansion in low voltage processor and handheld battery powered mobile applications. PCA9570 achieves 1 MHz I2C-bus speeds while maintaining backward compatibility to Fast-mode (400 kHz) and Standard-mode (100 kHz). The streamlined design consists of 4-bit push-pull outputs that provide low current consumption, small packaging options and a low operating voltage range of 1.1 V to 3.6 V. Latched outputs are symmetrical 4 mA current drive capability at 3.3 V to drive various control logic. The PCA9570 output expander offers a simple solution when additional outputs are needed while keeping interconnections and floor space to a minimum.

Features
  • 1 MHz I2C-bus interface with 6 mA SDA sink capability for lightly loaded buses(<100 pF) and improved power consumption
  • Compliant with the I2C-bus Fast and Standard modes
  • 1.1 V to 3.6 V operation
  • Latched outputs with a sink/source capability of 4 mA at 3.3 V
  • Readable device ID (manufacturer, device type, and revision)
  • Software Reset
  • Power-On Reset
  • Low standby current
  • 40ºC to +85ºC operation
  • ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
  • Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA

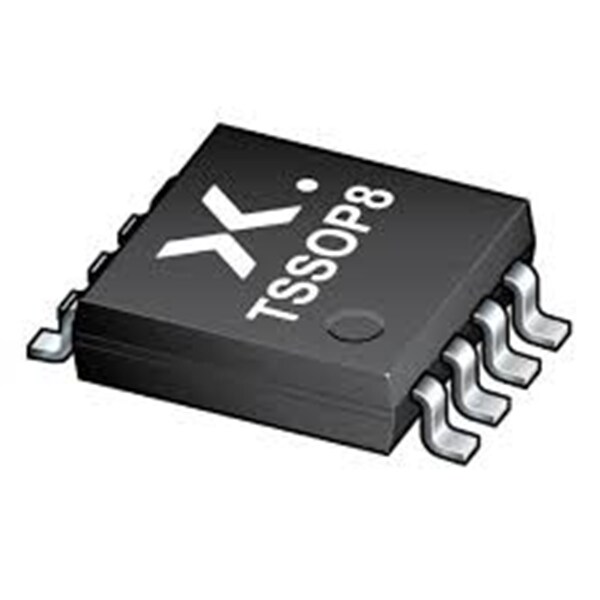

  • Packages offered: TSSOP8, XQFN8 (0.4 mm lead pitch), XQFN8 (0.5 mm lead pitch)

Applications
  • Smart phones and tablets
  • Portable medical equipment
  • Portable instrumentation and test measurement
 Block Diagram
NXP PCA9570 Block Diagram

  • NXP Semiconductors
