3M Power Over Camera Link (PoCL) Cables

3M Power over Camera Link® (PoCL) Cable Assemblies carry power in addition to signal to enable use in base configuration Power over Camera Link applications. The 3M .80mm digital camera PoCL Cable Assemblies are available in a variety of cable lengths and mate to industry standard Shrunk Delta Ribbon (SDR) 26-position PoCL camera connections.

Features
  • Connects between Mini-Camera Link style (SDR) I/O ports on PoCL Cameras and Camera Link style (MDR) ports on PoCL framegrabbers.
  • Both straight and right angle cable exit available.
  • 3 shielded quads and 6 unshielded twisted pairs.
  • Entire cable bundle shielded with foil and braid for additional signal protection.
  • Rugged ribbon type contact for reliable, repeatable connectivity.
  • Thumbscrew retention
  • EMI shielded end-to-end for reduced emissions.
Applications
  • Industrial Control
  • Factory Automation
  • Machine Vision
  • 3M Digital Camera Cables are primarily used in machine vision applications for the connection between the camera and the framegrabber.
  • Use in other LVDS signaling applications is also possible.

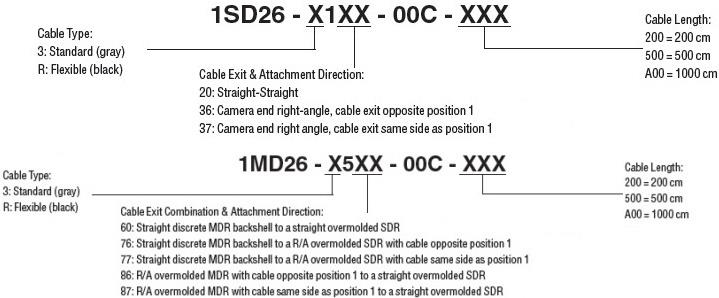

 Ordering Information for 3M Power over Camera Parts

3M Power over Camera Link Cable Assemblies Ordering Information

  • 3M
  • Connectors|Connector-Audio/Video|Wire & Cable
