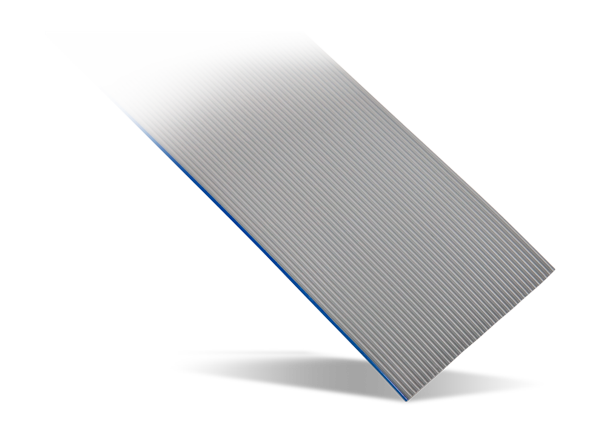

3M Halogen-Free Flat Cables

3M's Halogen-Free Flat Cables have Low Smoke Zero Halogen (LSZH) polyolefin insulation, resulting in low smoke (IEC 61034-2:2005), low toxicity of combustion gases (NFX70-100-2:2006), and reduced soot and corrosion damage to nearby equipment. These stranded cables from 3M also have a broad operating temperature range of -40ºC to 105ºC, 28 AWG wire on .050 inch centers (1mm centers for HF625 Series) for mass termination to a broad line of IDC connectors, and zippable primary cable for branching and discrete terminations.


Common Features
  • Low Smoke Zero Halogen (LSZH) Insulation. Advantages of LSZH insulation are the low smoke (IEC 61034-2:2005), and low toxicity of combustion gases (NF X 70-100-2:2006), reducing the risk to firefighters, and reducing the soot and corrosion damage to nearby equipment
  • Broad operating temperature range from -40˚C to 105˚C
  • Continuous split/bond repeat allows for mass termination of IDC connectors
  • Primary cable is zippable for branching or discrete terminations

HF100 Cables

3M's HF100 Series features 28 AWG stranded ribbon cables with a twist and flat conductor repeat pattern. The series combines 3M’s twist and flat cable technology with a halogen-free polyolefin (PO) dielectric for a differential signaling cable capable of mass termination to broad line of IDC connectors. Rated per UL File E42769, Style 21008, the HF100 series is available in standard and custom twist/flat repeat patterns.

Electrical Specifications
  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 102Ω (Unbalanced); 119Ω (Balanced)
  • Capacitance: 16.9 pF/ft [55.4 pF/m] (Unbalanced); 14.6 pF/ft [47.9 pF/m ] (Balanced)
  • Inductance: 0.18 μH/ft [0.59 μH/m] (Unbalanced); 0.21 μH/ft [0.69 μH/m] (Balanced)
  • Propagation Delay: 1.74 ns/ft [5.71 ns/m] (Unbalanced); 1.73 ns/ft [5.68 ns/m] (Balanced)
  • Velocity of Propagation: 58% (Unbalanced); 59% (Balanced)

Part Number
Number of
Conductors

Dimension A
Dimension B
HF100/10TP
10 (5 pair)
0.50 [ 12.7 ] 0.450 ± .010 [ 11.43 ]
HF100/14TP
14 (7 pair)
0.70 [ 17.8 ] 0.650 ± .010 [ 15.88 ]
HF100/16TP
16 (8 pair)
0.80 [ 20.3 ]
0.750 ± .010 [ 20.96 ]
HF100/20TP 20 (10 pair) 1.00 [ 25.4 ] 0.950 ± .010 [ 22.23 ]
HF100/30TP 30 (15 pair) 1.50 [ 38.1 ] 1.450 ± .015 [ 36.80 ]
HF100/34TP 34 (17 pair) 1.70 [ 43.2 ] 1.650 ± .015 [ 37.47 ]
HF100/40TP 40 (20 pair) 2.00 [ 50.8 ] 1.950 ± .015 [ 42.55 ]
HF100/50TP 50 (25 pair) 2.50 [ 63.5 ] 2.450 ± .015 [ 50.17 ]
HF100/60TP 60 (30 pair) 3.00 [ 76.2 ] 2.950 ± .015 [ 62.87 ]
HF100/64TP 64 (32 pair) 3.20 [ 81.3 ] 3.150 ± .015 [ 80.01 ]

HF100 Series Cable drawing:

3M HF100 Series Cable drawing



HF319 Cables

3M's HF319 High Flex Life Cable Series features 19 strands of high strength copper to provide an exceptionally long flex life of 25 million cycles at 3/4 inch radius.

Features
  • 19 strands of high strength copper allow provide exceptionally long flex life
  • Flex life of 25 million cycles at 3/4 inch radius

Electrical Specifications
  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 104Ω (Unbalanced); 167Ω (Balanced)
  • Capacitance: 14.1 pF/ft [46.3 pF/m] (Unbalanced); 8.2 pF/ft [26.9 pF/m ] (Balanced)
  • Inductance: 0.15 μH/ft [0.49 μH/m] (Unbalanced); 0.23 μH/ft [0.75 μH/m] (Balanced)
  • Propagation Delay: 1.47 ns/ft [4.82 ns/m] (Unbalanced); 1.37 ns/ft [4.49 ns/m] (Balanced)
  • Velocity of Propagation: 70% (Unbalanced); 74% (Balanced)

Part Number
Number of
Conductors

Dimension A
Dimension B
HF319/06 6
0.300 +/- .010 [11.43]
0.250 +/- .007 [10.16]
HF319/10 10 0.500 ± .010 [ 12.70 ]  0.450 ± .007 [ 11.43 ]
HF319/16
16
0.800 ± .015 [ 20.32 ] 0.750 ± .011 [ 19.05 ]
HF319/20
20
1.000 ± .015 [ 25.40 ] 0.950 ± .011 [ 24.13 ]
HF319/24
24
1.200 ± .015 [ 30.48 ] 1.150 ± .011 [ 29.21 ]
HF319/30
30
1.500 ± .020 [ 38.10 ]
1.450 ± .015 [ 36.83 ]
HF319/40
40 2.000 ± .020 [ 50.80 ]
1.950 ± .015 [ 49.53 ]
HF319/50
50
2.500 ± .020 [ 63.50 ] 2.450 ± .015 [ 62.23 ]

HF319 Series Cable drawing:

3M HF319 Cable Drawing



HF365 Cables

3M's HF365 Series features.050" 28 AWG Stranded, Halogen-Free Cables to permit mass termination to broad line of IDC connectors.

Electrical Specifications
  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 100Ω (Unbalanced); 168Ω (Balanced)
  • Capacitance: 15.0 pF/ft [49.2 pF/m] (Unbalanced); 8.4 pF/ft [27.7 pF/m ] (Balanced)
  • Inductance: 0.15 μH/ft [0.49 μH/m] (Unbalanced); 0.24 μH/ft [0.79 μH/m] (Balanced)
  • Propagation Delay: 1.51 ns/ft [4.95 ns/m] (Unbalanced); 1.42 ns/ft [4.66 ns/m] (Balanced)
  • Velocity of Propagation: 68% (Unbalanced); 72% (Balanced)

Part Number
Number of
Conductors

Dimension A
Dimension B
HF365/06 6
.300 +/- .010 [7.62]
.250 +/- .007 [6.35]
HF365/08 8 .400 +/- .010 [10.16] .350 +/- .007 [8.89]
HF365/09
9
.450 ± .010 [ 11.43 ]
.400 ± .007 [ 10.16 ]
HF365/10
10
.500 ± .010 [ 12.70 ]
.450 ± .007 [ 11.43 ]
HF365/11 11 .550 +/- .010 [13.97] .500 +/- .007 [12.7]
HF365/12 12 .600 +/- .010 [15.24] .550 +/- .007 [13.97]
HF365/14
14
.700 ± .010 [ 17.78 ]
.650 ± .007 [ 16.51 ]
HF365/15
15 .750 ± .010 [ 19.05 ]
.700 ± .007 [ 17.78 ]
HF365/16
16 .800 ± .015 [ 20.32 ]
.750 ± .011 [ 19.05 ]
HF365/18 18 .900 ± .015 [ 22.88 ] .850 ± .011 [ 21.59 ]
HF365/20
20
1.000 ± .015 [ 25.40 ]
0.950 ± .011 [ 24.13 ]
HF365/24 24
1.200 ± .015 [ 30.48 ]
1.150 ± .011 [ 29.21 ]
HF365/25
25 1.250 ± .015 [ 31.75 ]
1.200 ± .011 [ 30.48 ]
HF365/26
26
1.300 ± .015 [ 33.02]
1.250 ± .011 [ 31.75 ]
HF365/30
30
1.500 ± .020 [ 38.10 ]
1.450 ± .015 [ 36.83 ]
HF365/34
34 1.700 ± .020 [ 43.18 ]
1.650 ± .015 [ 41.91 ]
HF365/36 36 1.800 ± .020 [ 45.72 ] 1.750 ± .015 [ 44.45 ]
HF365/37
37 1.850 ± .020 [ 46.99 ]
1.800 ± .015 [ 45.72 ]
HF365/40
40
2.000 ± .020 [ 50.80 ]
1.950 ± .015 [ 49.53 ]
HF365/44 44 2.20 +/- .020 [55.88] 2.15 +/- .015 [54.61]
HF365/50 50 2.500 ± .020 [ 63.50 ]
2.450 ± .015 [ 62.23 ]
HF365/60 60 3.000 ± .020 [ 76.20 ] 2.950 ± .015 [ 74.93]
HF365/64
64 3.200 ± .020 [ 81.28 ]
3.150 ± .015 [ 80.01 ]

HF365 Series Cable drawing:

3M HF365 Series Cable Drawing



HF539 Cables

3M's HF365 Series Medium Flex Life Halogen-Free Cables combine 3M’s proven medium flex life conductor with a low smoke zero halogen PO dielectric. The HF539 Series is designed with a 28 AWG stranded, .050” pitch configuration, and
rated up to 10 million flex cycles over a 1 3/4” bend radius.
Features

  • 28 AWG stranded, .050” pitch configuration for use in termination to .100” pitch IDC ribbon cable connectors such as 3M™ Wiremount Socket, 3000 Series and 3M™ IDC Ribbon Cable Socket, Series 891
  • Up to 10 million flex cycle life enables use in applications that require long term electronic connection between moving parts
  • UL rating per UL File E42769, Style 21682
  • Zippable for branched or discrete terminations

Electrical Specifications
  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: (Primary Cable)> 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 100Ω (Unbalanced); 168Ω (Balanced)
  • Capacitance: 15.0 pF/ft [49.2 pF/m] (Unbalanced); 8.4 pF/ft [27.7 pF/m ] (Balanced)
  • Inductance: 0.15 μH/ft [0.49 μH/m] (Unbalanced); 0.24 μH/ft [0.79 μH/m] (Balanced)
  • Propagation Delay: 1.51 ns/ft [4.95 ns/m] (Unbalanced); 1.42 ns/ft [4.66 ns/m] (Balanced)
  • Velocity of Propagation: 68% (Unbalanced); 72% (Balanced)

Part Number
Number of
Conductors

Dimension A
Dimension B
HF539/10 10
0.500" ± 0.010"
0.450" ± 0.007"
HF539/14
14
0.700" ± 0.010" 0.650" ± 0.007"
HF539/16
16
0.800" ± 0.015" 0.750" ± 0.011"
HF539/20
20
1.000" 0.015" 0.950" ± 0.011"
HF539/26 26 1.300" ± 0.015" 1.250" ± 0.011"
HF539/30 30 1.500" ± 0.020" 1.450" ± 0.015"
HF539/34
34
1.700" ± 0.020"
1.650" ± 0.015"
HF539/40
40 2.000" ± 0.020"
1.950" ± 0.015"
HF539/50
50
2.500" ± 0.020"
2.450" ± 0.015"
HF539/64
64
3.200" ± 0.020"
3.150" ± 0.015"

HF539 Series Cable drawing:



HF625 Cables

3M's HF625 Series features 28 AWG stranded Round Conductors Flat Cables on 1mm pitch to permit mass terminations to a broad line of metric IDC connectors.

Electrical Specifications

  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 85Ω (Unbalanced); 144Ω (Balanced)
  • Capacitance: 60.5 pF/ft [18.44 pF/m] (Unbalanced); 33.8 pF/ft [10.29 pF/m ] (Balanced)
  • Inductance: 0.43 μH/ft [0.13 μH/m] (Unbalanced); 0.69 μH/ft [0.21 μH/m] (Balanced)
  • Propagation Delay: 5.15 ns/ft [1.57 ns/m] (Unbalanced); 4.86 ns/ft [1.48 ns/m] (Balanced)
  • Velocity of Propagation: 65% (Unbalanced); 69% (Balanced)

Number of
Conductors

Part
Number

Dimension A
Dimension B
6
HF625/06
6.00 ± 0.20 [ .236 ]
5.00 ± 0.18 [ .197 ]
8 HF625/08 8.00 ± 0.20 [ .315 ] 7.00 ± 0.18 [ .276 ]
10 HF625/10 10.00 ± 0.20 [ .394 ] 9.00 ± 0.18 [ .354 ]
12 HF625/12 12.00 ± 0.20 [ .472 ] 11.00 ± 0.18 [ .433 ]
14
HF625/14 14.00 ± 0.20 [ .551 ] 13.00 ± 0.18 [ .512 ]
16
HF625/16 16.00 ± 0.22 [ .630 ] 15.00 ± 0.20 [ .591 ]
18
HF625/18
18.00 ± 0.22 [ .709 ]
17.00 ± 0.20 [ .669 ]
20
HF625/20
20.00 ± 0.22 [ .787 ] 19.00 ± 0.20 [ .748 ]
22
HF625/22
22.00 ± 0.22 [ .866 ]
21.00 ± 0.20 [ .827 ]
24
HF625/24
24.00 ± 0.22 [ .945 ]
23.00 ± 0.20 [ .906 ]
26
HF625/26 26.00 ± 0.22 [ 1.024 ] 25.00 ± 0.20 [ .984 ]
28
HF625/28
28.00 ± 0.22 [ 1.102 ]
27.00 ± 0.20 [ 1.063 ]
30
HF625/30 30.00 ± 0.25 [ 1.181 ] 29.00 ± 0.23 [ 1.142 ]
32
HF625/32
32.00 ± 0.25 [ 1.260 ]
31.00 ± 0.23 [ 1.220 ]
34
HF625/34 34.00 ± 0.25 [ 1.339 ] 33.00 ± 0.23 [ 1.299 ]
36
HF625/36
36.00 ± 0.25 [ 1.417 ]
35.00 ± 0.23 [ 1.378 ]
38
HF625/38
38.00 ± 0.25 [ 1.496 ]
37.00 ± 0.23 [ 1.457 ]
40 HF625/40
40.00 ± 0.25 [ 1.575 ] 39.00 ± 0.23 [ 1.535 ]
42
HF625/42
42.00 ± 0.25 [ 1.654 ]
41.00 ± 0.23 [ 1.614 ]
44
HF625/44 44.00 ± 0.25 [ 1.732 ] 43.00 ± 0.23 [ 1.693 ]
46
HF625/46
46.00 ± 0.25 [ 1.811 ]
45.00 ± 0.23 [ 1.772 ]
48
HF625/48
48.00 ± 0.25 [ 1.890 ]
47.00 ± 0.23 [ 1.850 ]
50
HF625/50 50.00 ± 0.25 [ 1.969 ] 49.00 ± 0.23 [ 1.929 ]

HF625 Series Cable drawing:
3M HF625 Series Cable Drawing



HF659 Cables

3M's HF659 Series .050" 28 AWG Stranded, Shielded/Jacketed Halogen-Free Cables feature round construction to permit easier routing. The continuous split/bond repeat allows for mass termination of IDC connectors, and dual shielding provides 35 db average shielding.

Features
  • Round construction permits easier routing
  • 28 AWG wire on .050 inch centers permits mass termination to broad line of IDC connectors
  • Continuous split/bond repeat allows for mass termination of IDC connectors
  • Shielding: 0.001 [0.03] Thick Aluminum/Polyester Film Foil and 90% Coverage Tinned Copper Braid
  • Dual shielding provides 35 db average shielding

Electrical Specifications

  • Voltage Rating: USA: 150V Canada: 150V EU: <50V
  • Insulation Resistance: (Primary Cable) > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 75Ω (Unbalanced); 136Ω (Balanced)
  • Capacitance: 22.6 pF/ft [74.3 pF/m] (Unbalanced); 12.4 pF/ft [40.6 pF/m ] (Balanced)
  • Inductance: 0.13 μH/ft [0.43 μH/m] (Unbalanced); 0.23 μH/ft [0.75 μH/m] (Balanced)
  • Propagation Delay: 1.69 ns/ft [5.54 ns/m] (Unbalanced); 1.69 ns/ft [5.54 ns/m] (Balanced)
  • Velocity of Propagation: 60% (Unbalanced); 60% (Balanced)

Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.


3M HF659 Series Cables
Part Number
Number of
Conductors

Dimension A
Dimension B
HF659/09-275
9 0.25 [.35]
0.40 [ 10.2 ]
HF659/10-275
10
0.25 [6.4]
0.45 [ 11.4 ]
HF659/14-275 14 0.30 [7.6] 0.65 [ 16.5 ]
HF659/15-275 15 0.30 [7.6]] 0.70 [ 17.8 ]
HF659/16-275 16 0.30 [7.6] 0.75 [ 19.1 ]
HF659/20-275 20 0.33 [8.4] 0.95 [ 24.1 ]
HF659/24-275 24 0.34 [8.6] 1.15 [ 29.2 ]
HF659/25-275 25 0.34 [8.6] 1.20 [ 30.5 ]
HF659/26-275 26 0.34 [8.6] 1.25 [ 31.8 ]
HF659/34-275 34 0.37 [9.4] 1.65 [ 41.9 ]
HF659/36-275 36 0.41 [10.4] 1.75 [ 44.5 ]
HF659/37-275
37
0.41 [10.4]
1.80 [ 45.7 ]
HF659/40-275 40 0.41 [10.4] 1.95 [ 49.5 ]
HF659/50-275 50 0.45 [11.4] 2.45 [ 62.2 ]
HF659/60-275 60 0.48 [12.2] 2.95 [ 74.9 ]
HF659/64-275 64 0.48 [12.2] 3.15 [ 80.0 ]


HF659 Series Cable drawing:

3M  HF659 Series Cable drawing


HF759 Cables

3M HF759 Series .050" 28 AWG Stranded, Shielded/Jacketed Halogen-Free Cables feature round construction to permit easier routing. The continuous split/bond repeat allows for mass termination of IDC connectors.

Features
  • Round construction permits easier routing
  • 28 AWG wire on .050 inch centers permits mass termination to broad line of IDC connectors
  • Continuous split/bond repeat allows for mass termination of IDC connectors

Electrical Specifications

  • Voltage Rating: USA: 300V Canada: 150V EU: <50V
  • Insulation Resistance: (Primary Cable) > 1 × 1010 Ω/10 ft. [3 m]
  • Characteristic Impedance: 54Ω (Unbalanced); 107Ω (Balanced)
  • Capacitance: 28.7 pF/ft [84.2 pF/m] (Unbalanced); 14.4 pF/ft [47.2 pF/m ] (Balanced)
  • Inductance: 0.08 μH/ft [0.27 μH/m] (Unbalanced); 0.16 μH/ft [0.52 μH/m] (Balanced)
  • Propagation Delay: 1.55 ns/ft [4.95 ns/m] (Unbalanced); 1.54 ns/ft [4.95 ns/m] (Balanced)
  • Velocity of Propagation: 66% (Unbalanced); 66% (Balanced)


Part Number
Number of
Conductors

Dimension A
Dimension B
HF759/09-275
9 0.26 [ 6.6 ] 0.40 [ 10.2 ]
HF759/10-275
10
0.26 [ 6.6 ] 0.45 [ 11.4 ]
HF759/14-275
14 0.27 [ 6.9 ] 0.65 [ 16.5 ]
HF759/15-275 15 0.27 [ 6.9 ] 0.70 [ 17.8 ]
HF759/16-275
16
0.27 [ 6.9 ] 0.75 [ 19.1 ]
HF759/20-275
20
0.30 [ 7.6 ] 0.95 [ 24.1 ]
HF759/24-275 24 0.33 [ 8.4 ] 1.15 [ 29.2 ]
HF759/25-275 25 0.33 [ 8.4 ] 1.20 [ 30.5 ]
HF759/26-275
26
0.33 [ 8.4 ] 1.25 [ 31.8 ]
HF759/30-275
30
0.33 [ 8.4 ]
1.45 [ 36.8 ]
HF759/34-275
34
0.37 [ 9.4 ] 1.65 [ 41.9 ]
HF759/36-275 36 0.39 [ 9.9 ] 1.75 [ 44.5 ]
HF759/37-275
37
0.39 [ 9.9 ] 1.80 [ 45.7 ]
HF759/40-275
40
0.39 [ 9.9 ] 1.95 [ 49.5 ]
HF759/50-275
50
0.44 [ 11.2 ] 2.45 [ 62.2 ]
HF759/60-275 60 0.47 [ 11.9 ] 2.95 [ 74.9 ]
HF759/64-275
64
0.50 [ 12.7 ] 3.15 [ 80.0
Note: SF=Splice Free; Blank=Standard

HF759 Series Cable drawing:

3M HF759 Series Cable drawing



  • 3M
  • Connectors|Wire & Cable
